Overview

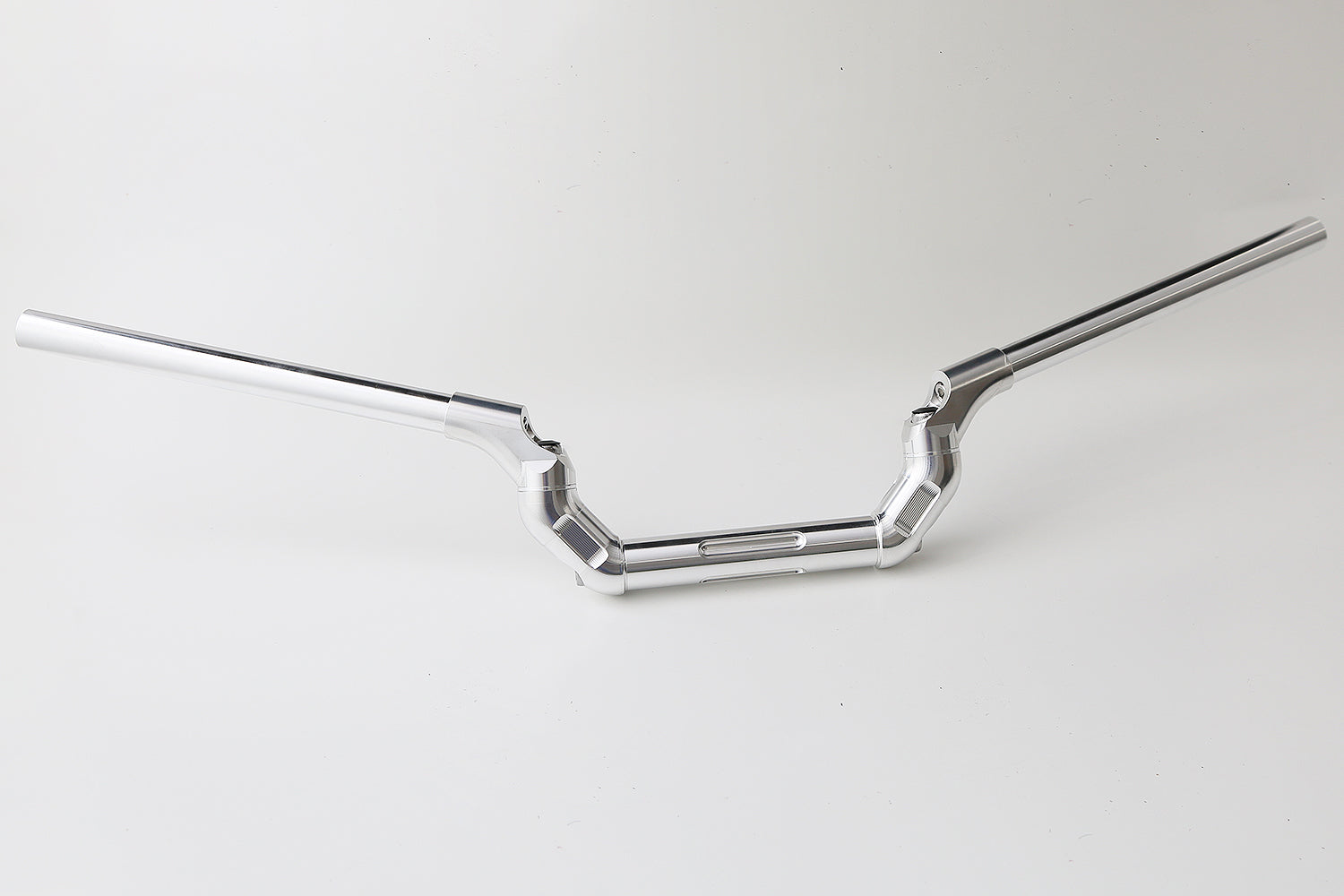

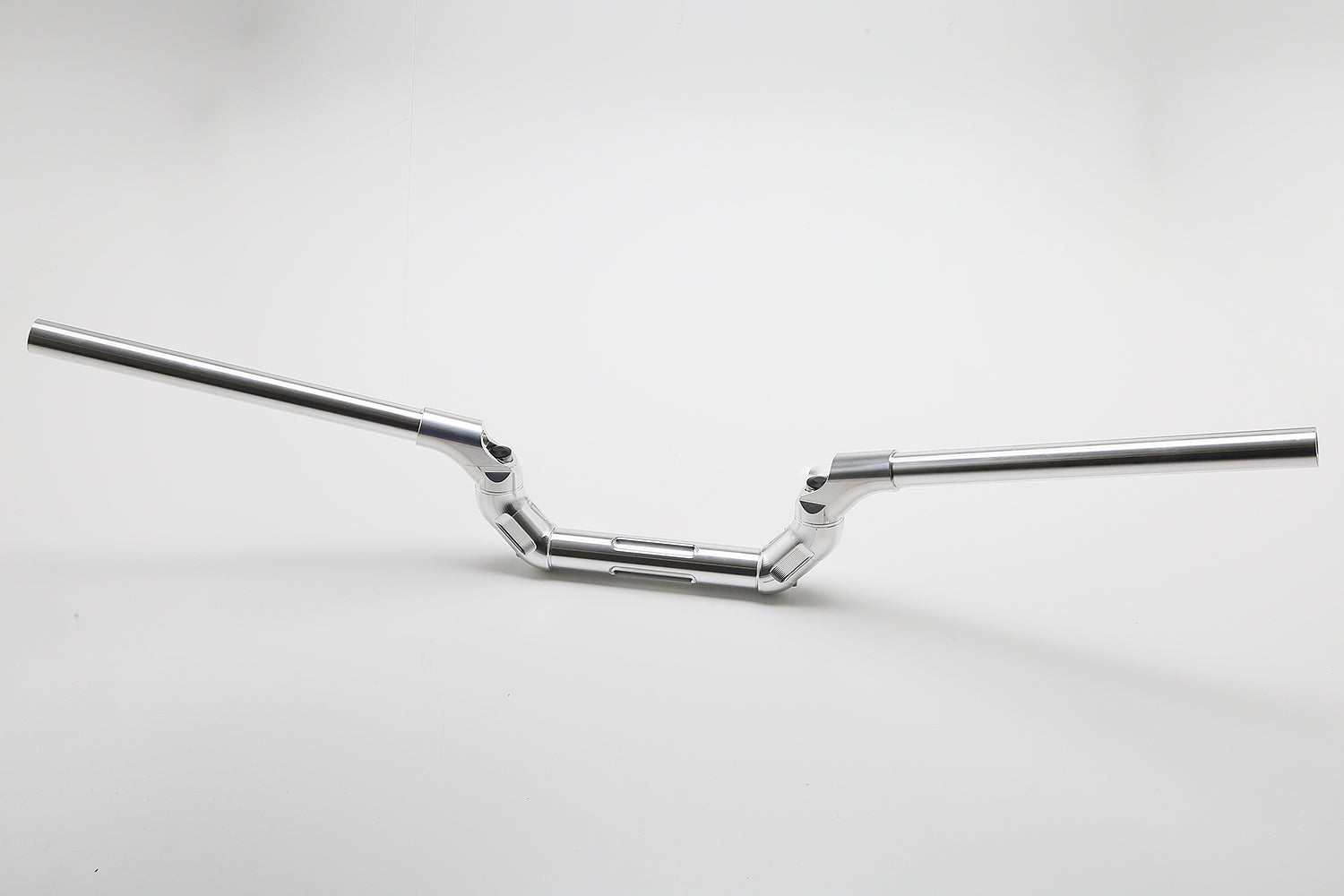

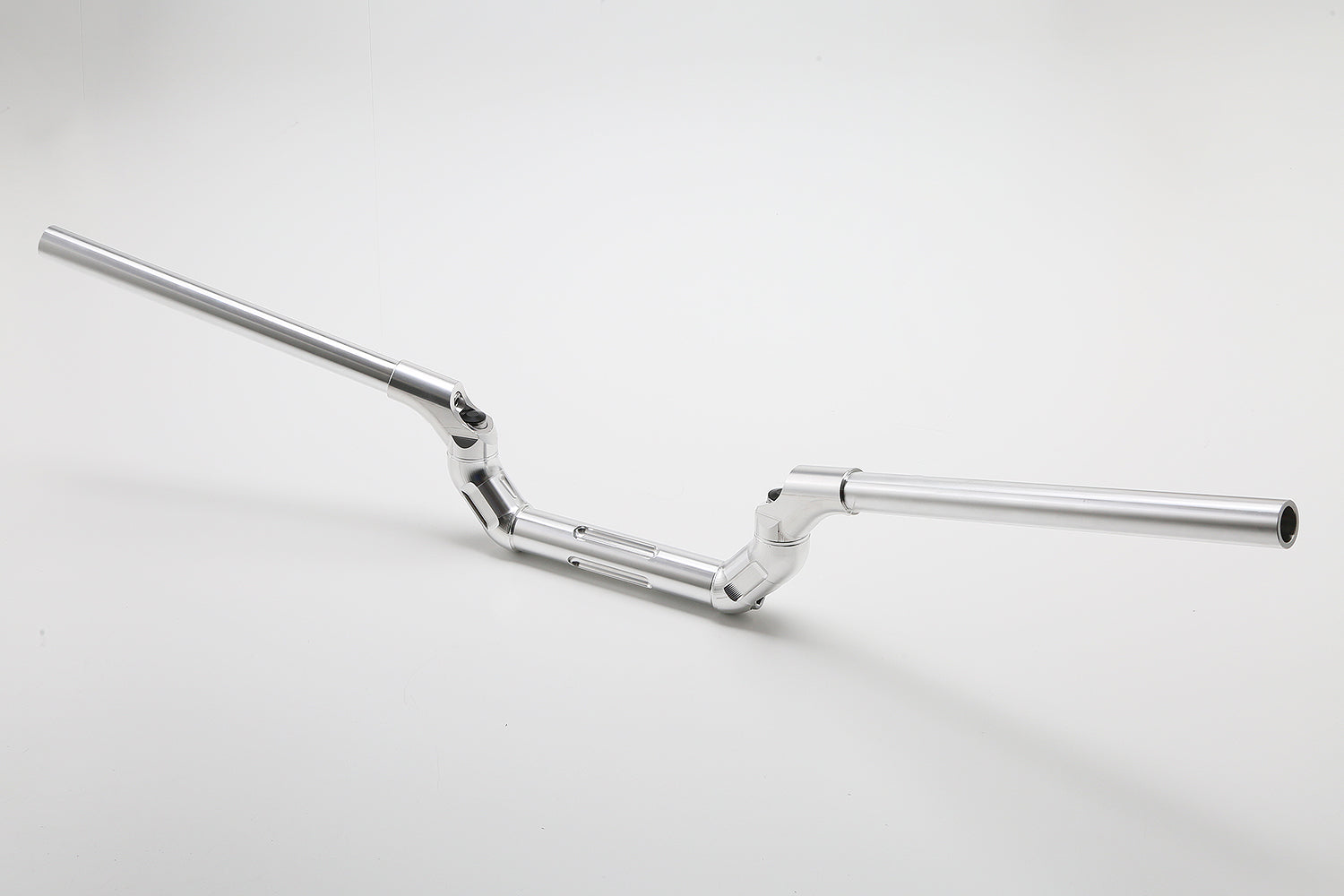

The Main Difference Between this Handlebar and the model specific ones, is these are NOT predrilled

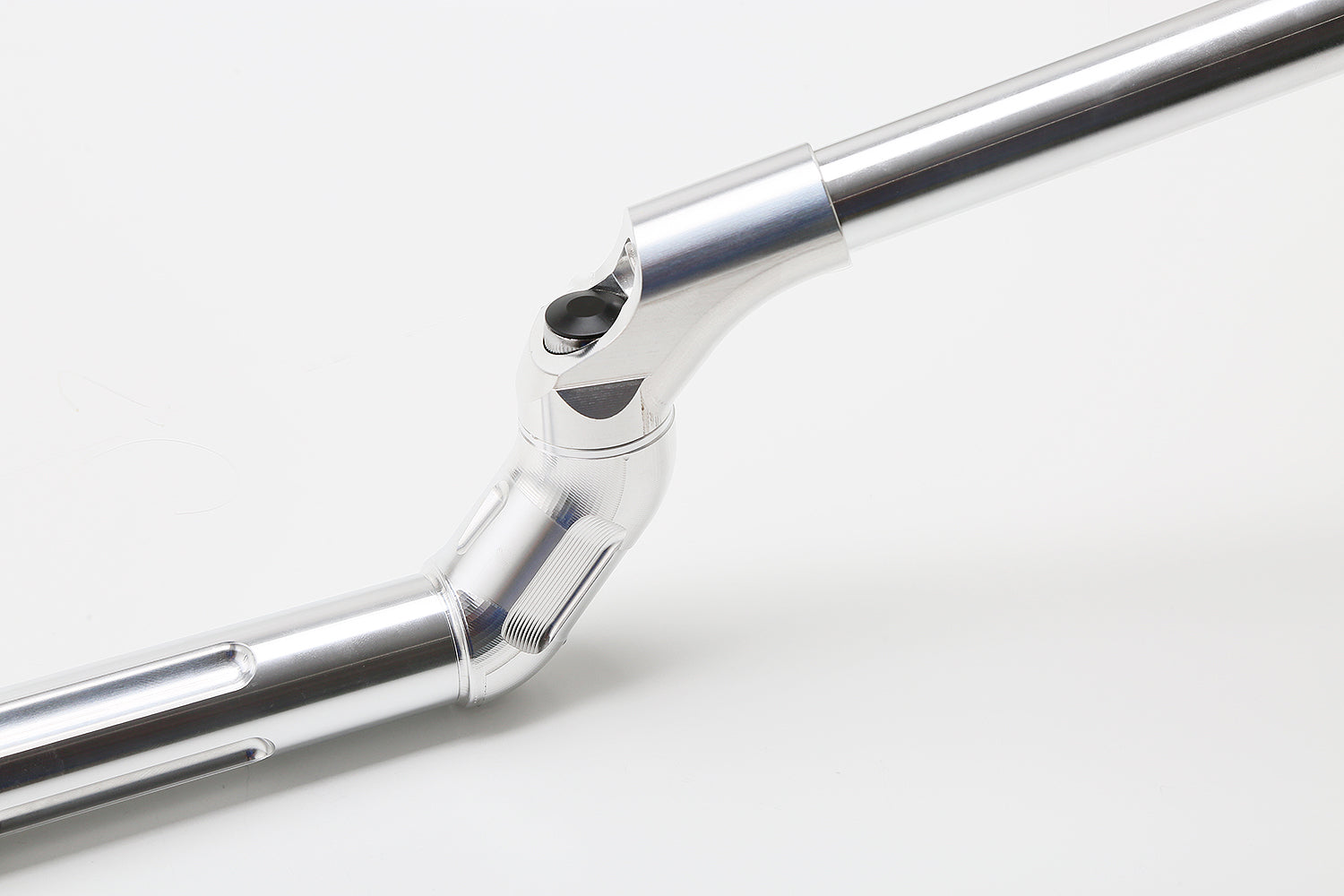

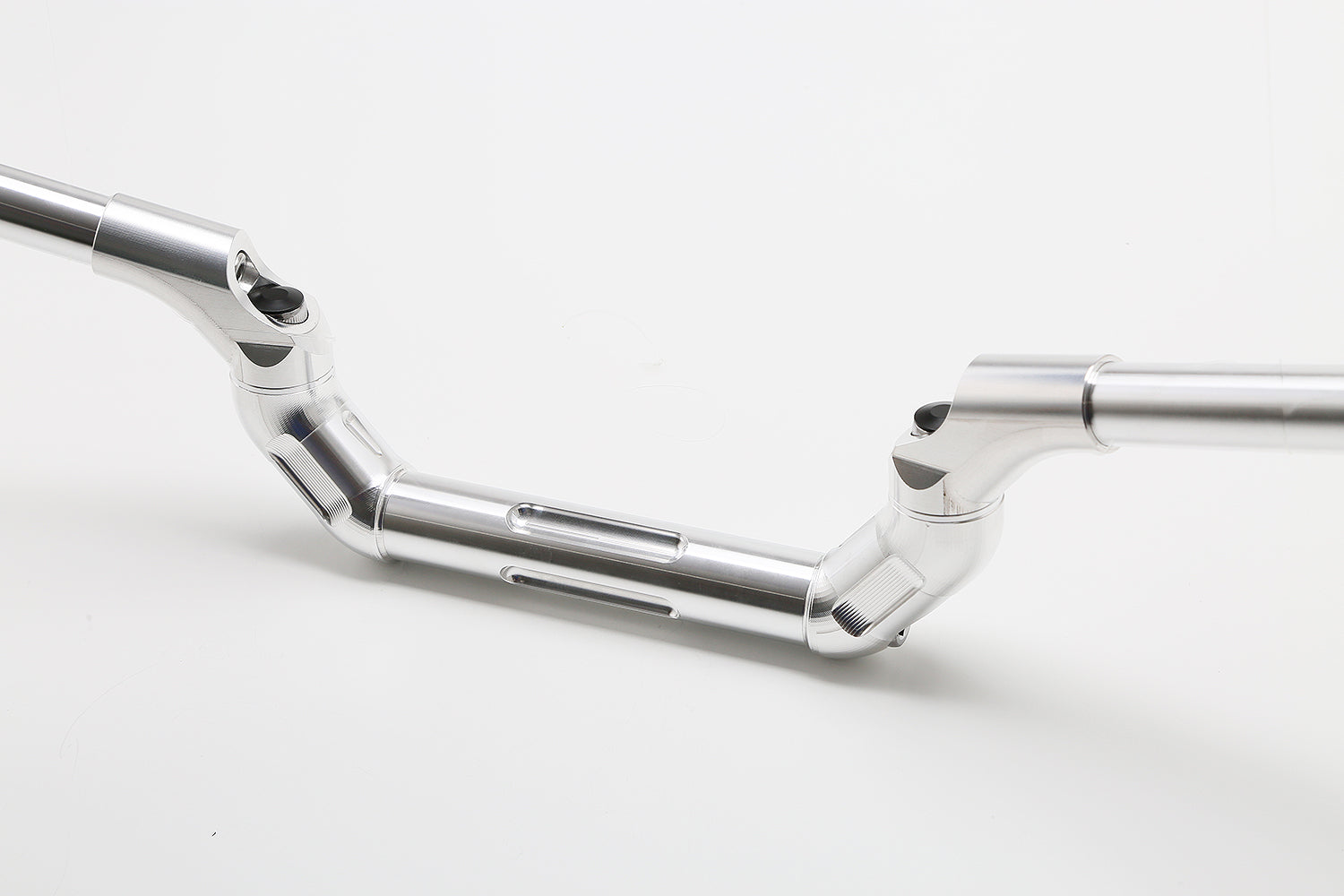

The name variable handle comes from the fact that the angle of the handle can be adjusted.
The angle of the handle can be selected from three angles: 20°/22°/24°.
●Common parts
Handlebar post clamping part 140mm Φ28.6 (fat bar standard)
Handlebar total length 281mm Effective handlebar length 242mm
Handlebar base Φ26 Handlebar diameter Φ22.2
●When aperture setting is 20 degrees
Height: 69mm
Width: 765mm
Front to back: 166mm
●When aperture setting is 22 degrees
Height: 73mm
Width: 761mm
Front to back: 168mm
●When aperture setting is 24 degrees
Height: 76mm
Width: 756mm
Front to back: 173mm
※No grip holes drilled
※As this is a universal product, we cannot accept questions regarding compatibility.
Please refer to the dimension diagram for your judgment.
■About spacer size
The standard size is "2mm".
Extra Spacers in the sizes of 2mm, 7mm, 9mm, and 12mm are also available (link below)
AELLA handlebar end slider AE-68302 is compatible.
