Overview

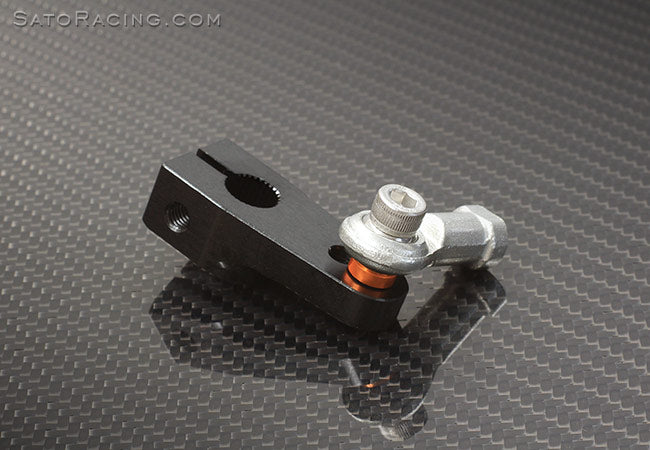

SATO RACING Shift Arm for Suzuki models are precision CNC-machined from high strength billet aluminum and anodized in a deep Black finish. Includes a rod end and attachment hardware.
Works great with ANY Rearset! Features 2 mounting positions for attaching the rod end, so you can adjust the shift stroke to your preference. (Use stock flange head bolt to tighten Shift Arm onto shift spindle).
There are 2 mounting holes on the Shift Arm:
Attaching the rod end to the inner hole will give you a shorter shift stroke, with a corresponding increase in pedal force required due to having less leverage, while attachment to the outer hole would would result in a longer stroke with a lighter shift feel.
2 versions of this Shift Arm are available:
Part# S-CA (includes male rod end) Fits*: GSX-R600/ 750 ('06-'16) GSX-R1000 ('09-'16 / '17- )
Part# S-CA2 (includes female rod end) Fits*: GSX-S1000/F/Z '15-'20 GSX-S750/Z '15-'20 GSX-R1000 ('00-'08) GSX1100S/ GSX-R1100 / TL1000 HAYABUSA / RF900/ GSF/Bandit (does not fit GSX1250) KATANA '20
*Stock shift arm / shift rod setup. In some cases you might require a different type of rod end than recommended, such as if you are using it with an aftermarket quick shifter.
