Overview

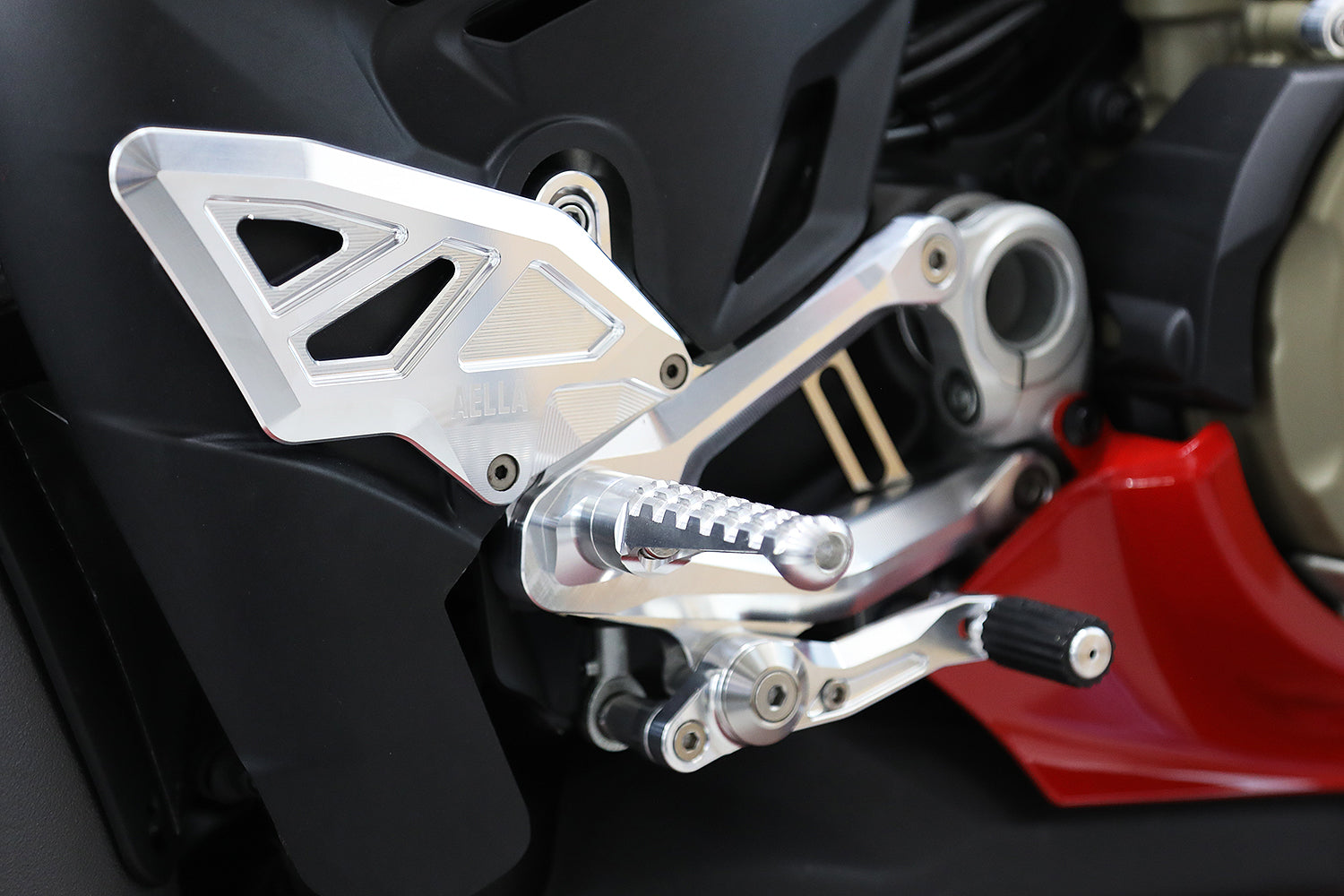

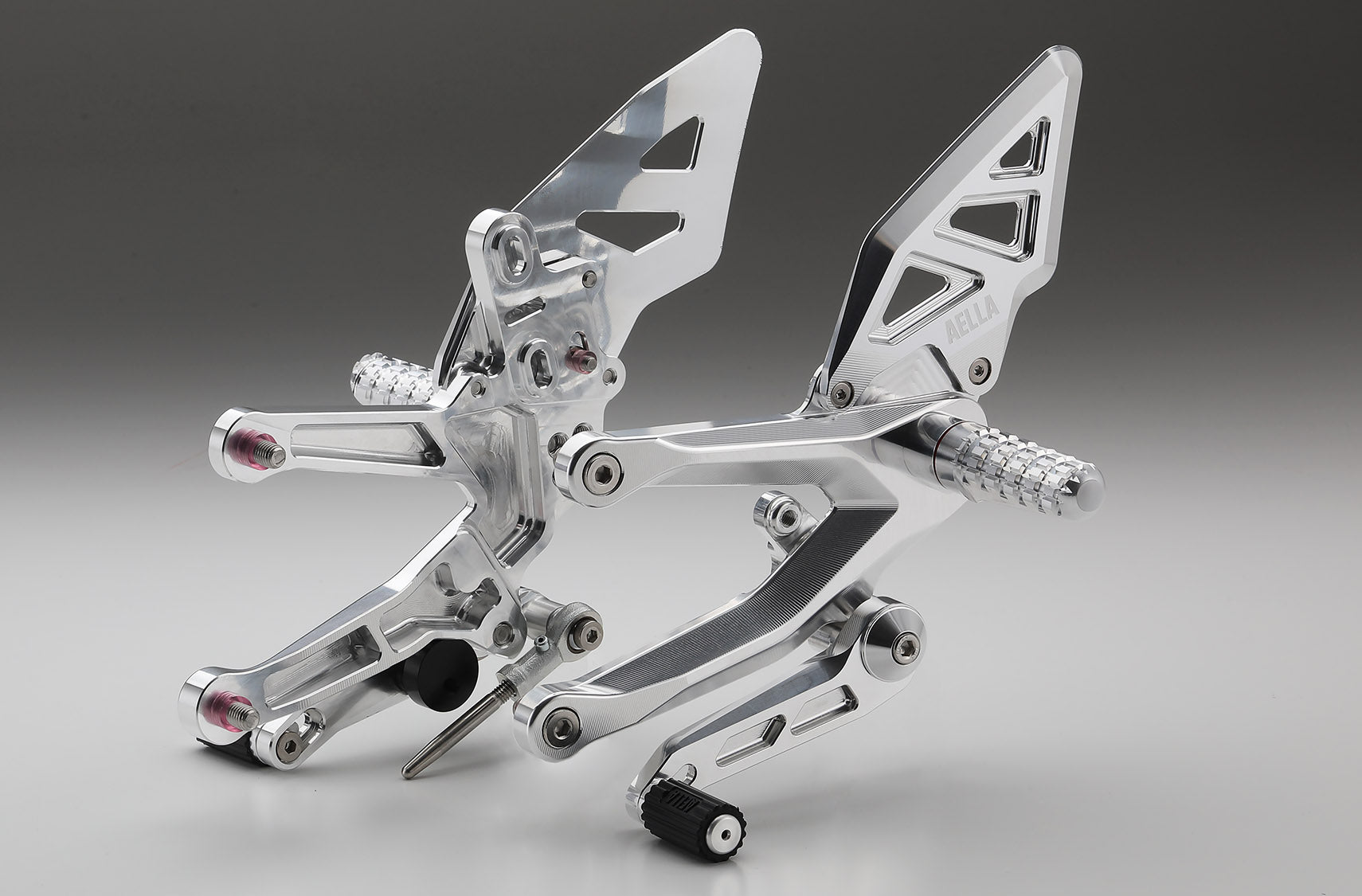

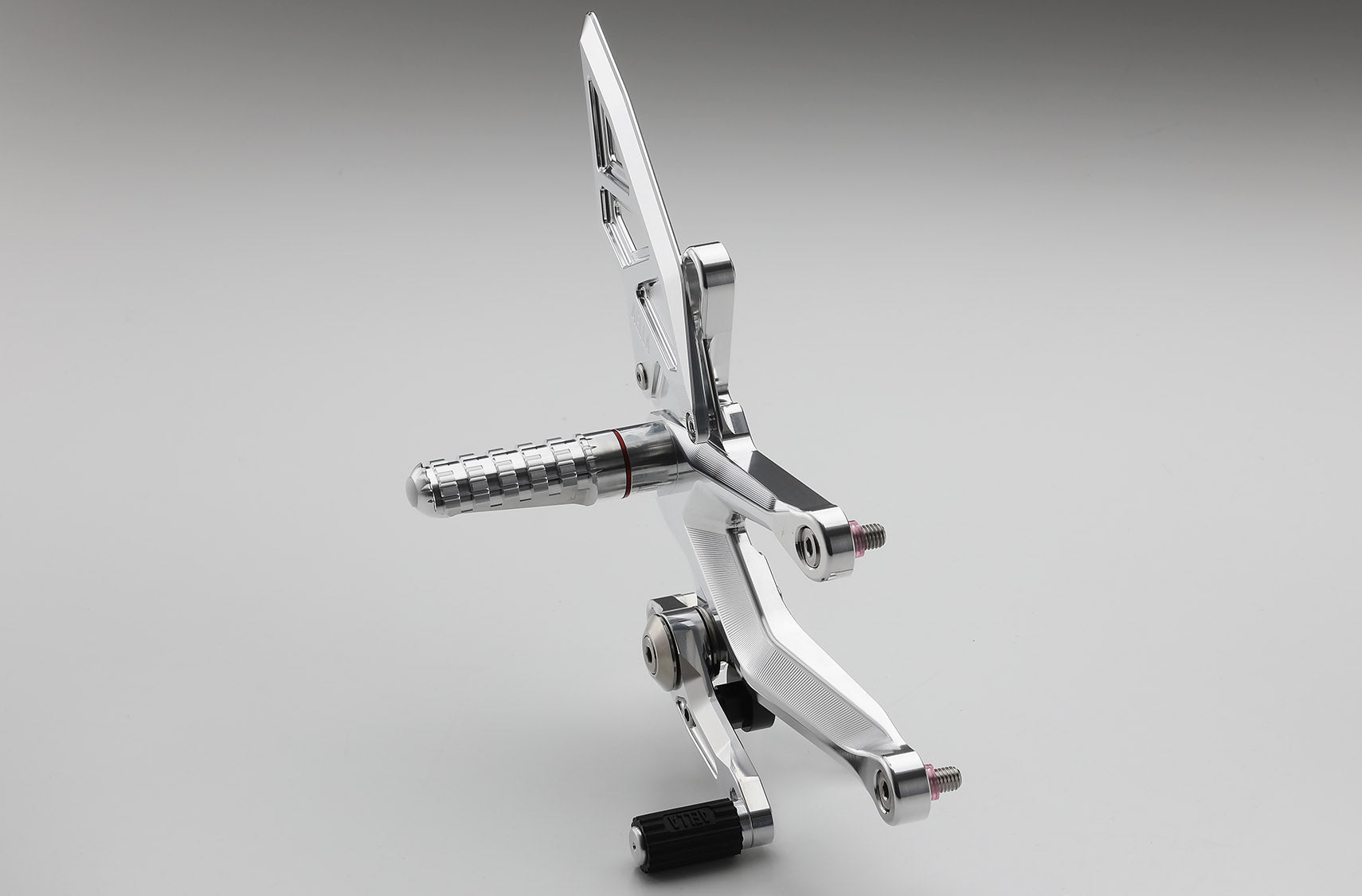

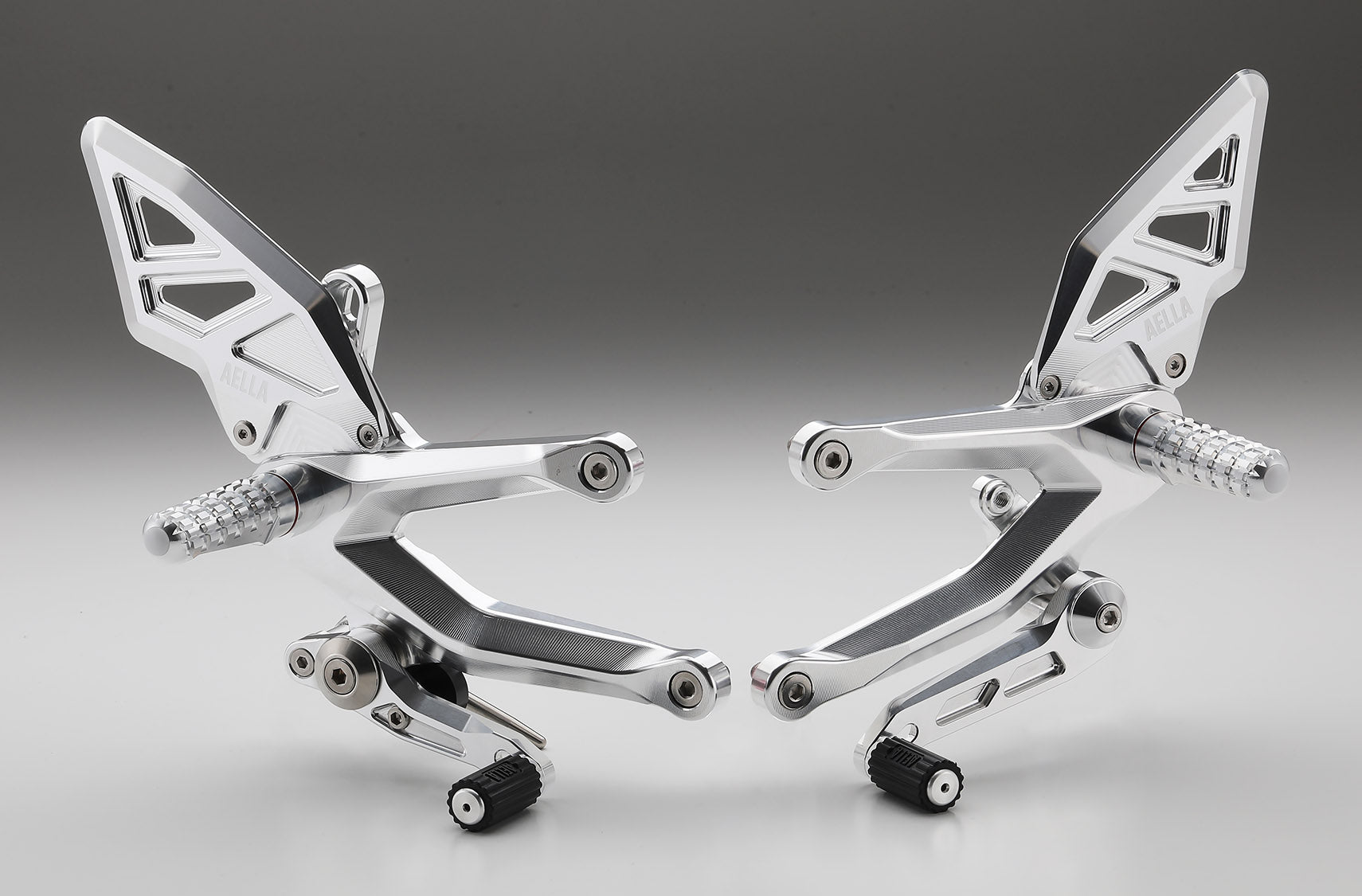

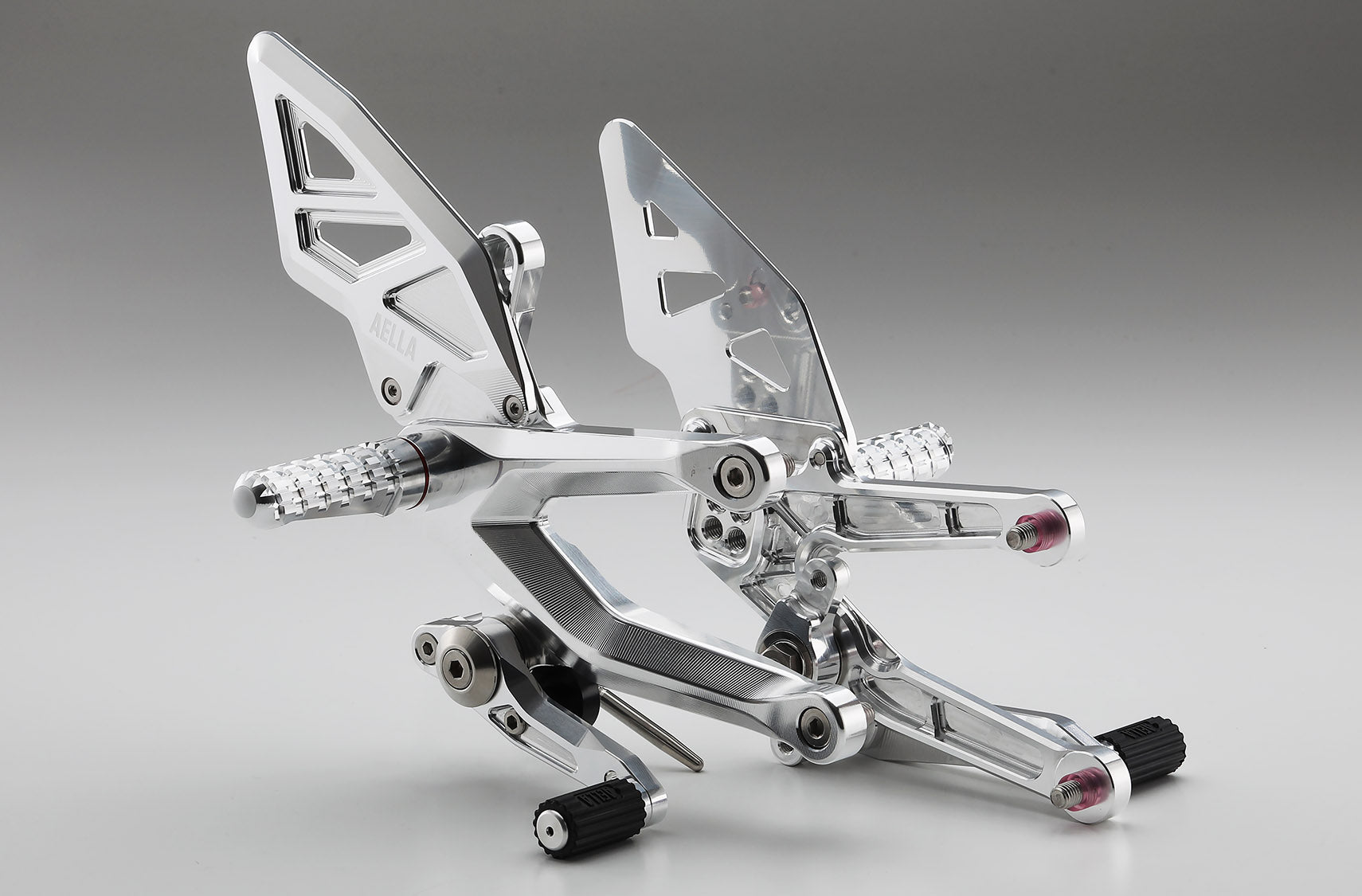

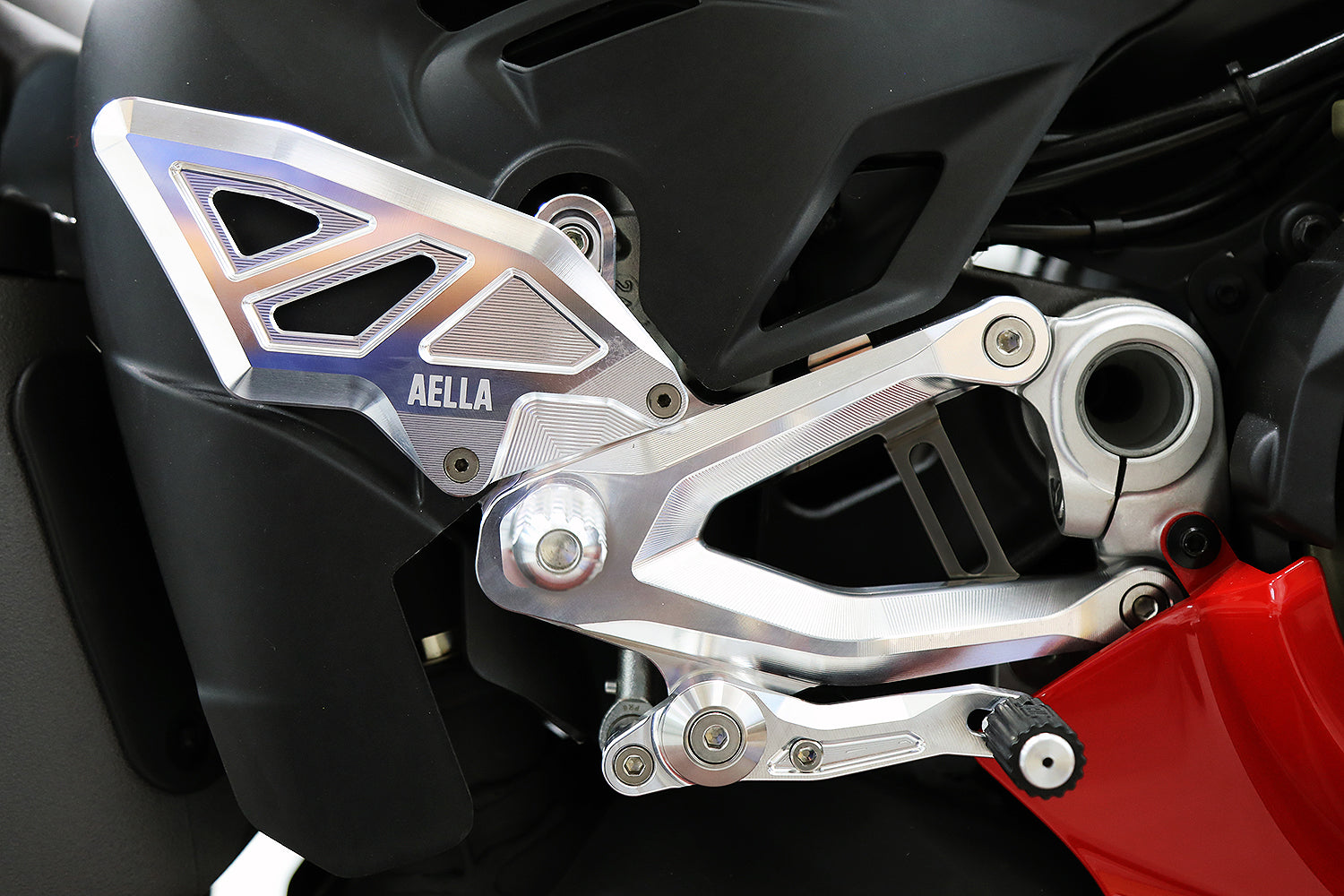

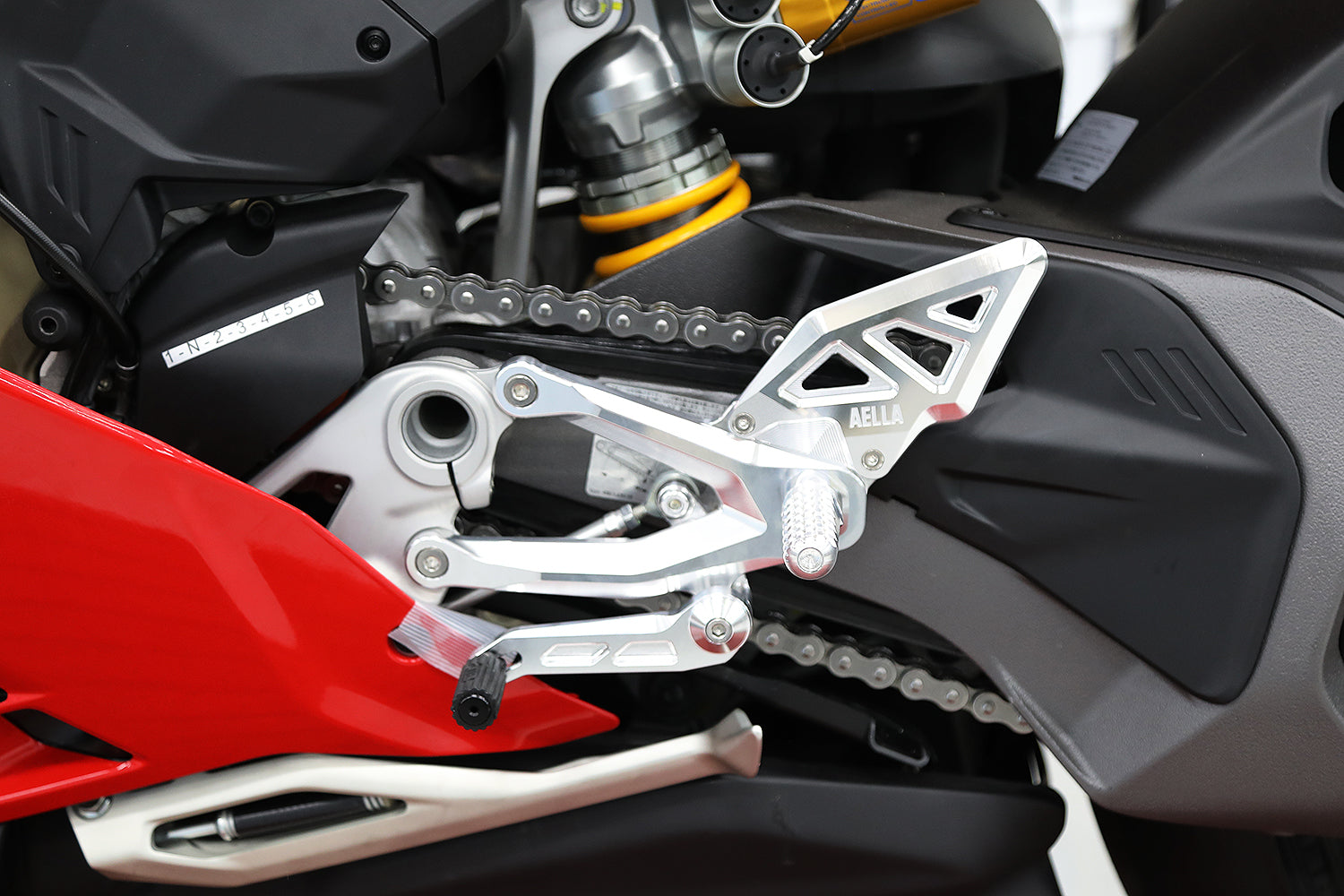

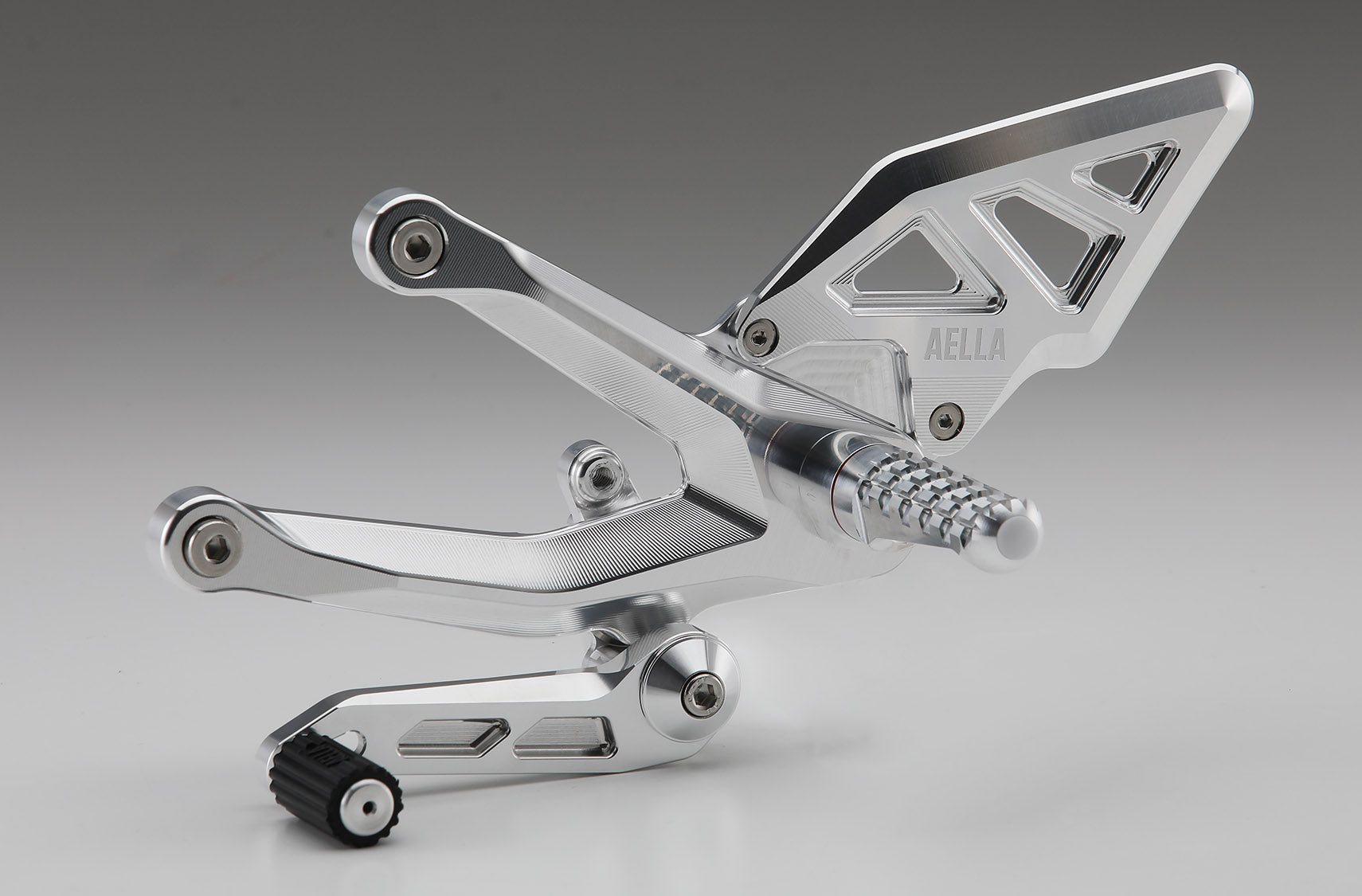

Riding step kit Panigale V4 7G (2025)
This kit is designed to be as easy to use as if it were a part of the rider's body, in keeping with the overwhelming presence of Ducati's flagship model, the V4.
The design combines the simplicity of a one-piece structure with a beautiful form that harmonizes with the sophisticated style of the V4.
The right side base is made of 30mm thick aluminum, and the left side is made of 15mm thick aluminum, each of which is carefully machined over time. A three-dimensional form is adopted so as not to spoil the elegant design of the vehicle, resulting in a finish that stirs the joy of ownership.
We paid careful attention to even the invisible back side, and bold cutouts have been made to reduce weight and the load on the mounting boss in the event of a fall.
There are four positions: "0mm forward / 10mm up", "0mm forward / 20mm up", "10mm forward / 10mm up", and "10mm forward / 20mm up". The design hides the mounting holes, giving the bike a smart look.
This position setting fits the tank shape, which is significantly slimmer than the previous 2024 model.
It provides an aerodynamic advantage when driving straight, and suppresses unnecessary input to the handlebars by bracing your feet when braking.
In addition, the structure allows the load from the outside knee to be firmly transmitted to the side of the tank when cornering.
The pivot bolt of the shift pedal uses a precise shaft tolerance (g6).
This minimizes rattling with the bearing inner diameter to the utmost, achieving a direct and reliable shift feel.
In addition, the V4 (7G) model has a unique design that does not protrude outward, which is equivalent to the step bar position being changed 10mm inward compared to the previous model. This allows the rider to adopt a tighter, more aerodynamic and natural riding form, further improving vehicle control.
●Product specifications
-Reverse shift possible
-Adjustable pedal tip
-Double ball bearings
■Position (compared to genuine)
-Front 0mm/10mm, up 10mm/20mm (total of 4 positions)

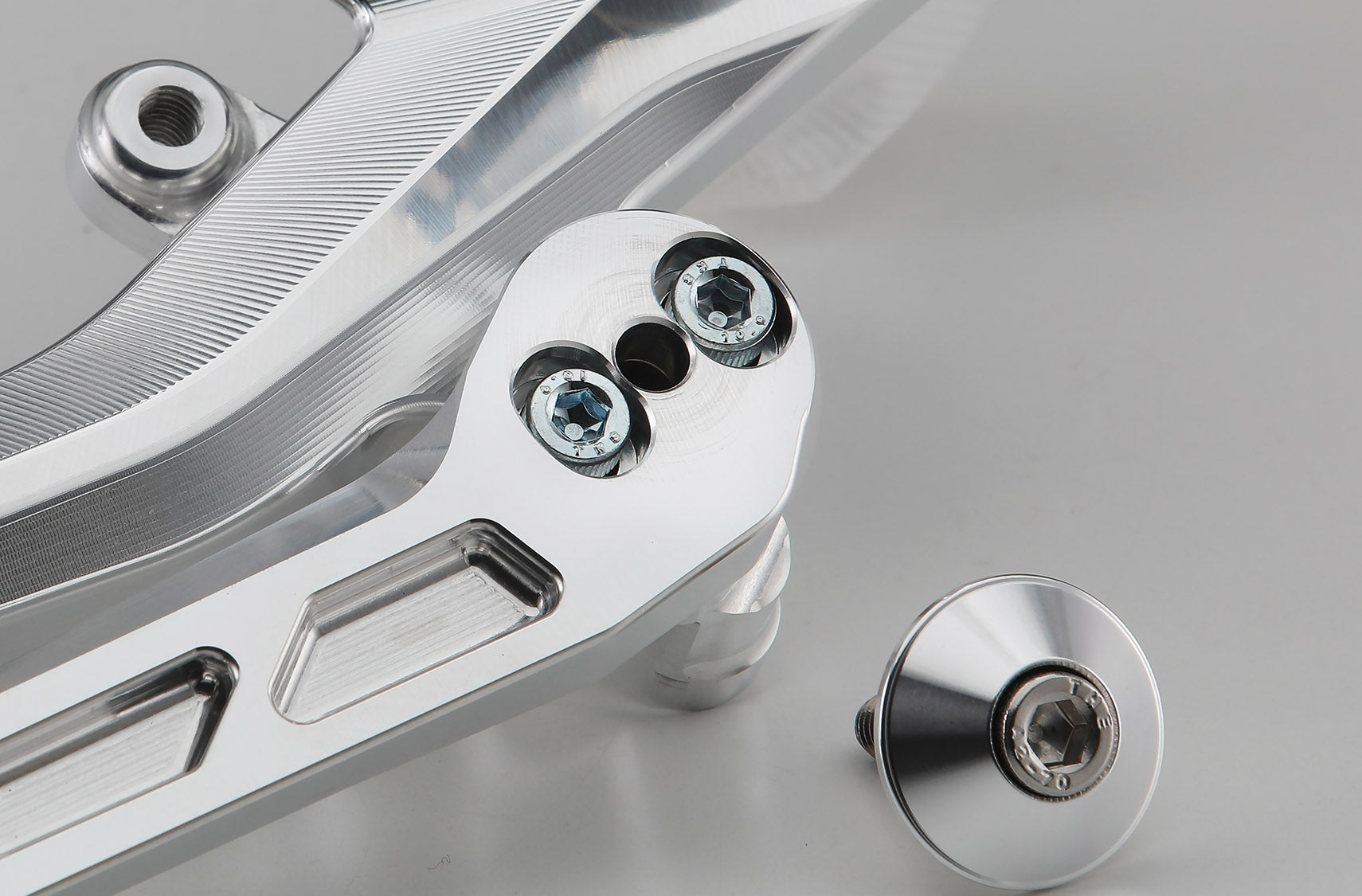

Shift pedal adjustment mechanism
The height of the tip of the shift pedal can be easily adjusted using a unique mechanism. You can set it up to the optimal position according to your preference.
Large heel guard
Uses a large heel guard with a special design that provides optimal support
Carefully cut out parts
Bold cutouts have been applied to the back of the step, designed to absorb shock while maintaining strength.
CNC aluminum scraping out
The exact operation feeling brought about by high rigidity realizes a not-higher step work such as firm loading, every operation is clicking.
Both step bar position adjustment mechanism
There are two mounting positions of the step bar in the front and back, and it is possible to move the step position further by 10 mm. Thereby enabling further fine adjustment.
Both pedal tip variable type
You can shorten the pedal tip by up to 10 mm so that it fits even a small rider. In addition, the pedal tip has a detent mechanism and the possibility of falling off is very low.
Change pedal Independent adjustment type
On the change side, it is possible to adjust the pedal height independently after optimizing the condition of auto shifter entry with a rod.
Other:
Both pedal movable parts Double bearing structure / block pattern adoption of step bar / adoption of L-shaped brake pedal / compatibility of rigidity and weight reduction with meat removal / reverse change correspondence (same specification as just changing shift rod mounting position )
Special alumite colors:
Aella parts are available in one of 15 alumite colors of your choice - $88.00 per 1 color
For details on Premium Colors go to the Related item link Below
※ Prices vary depending on the number of colors. Please contact the staff.
※ According to product specifications, shift rod other parts will be white alumite only, please understand.
● Premium Color: How to Order
· Please select "Premium Order" color of this product and add it to the cart.
· Go to the Related item link Below
· Please choose your favorite color(s) and add it to the cart. If you would like more than one color please specify where you want the colors
