Overview

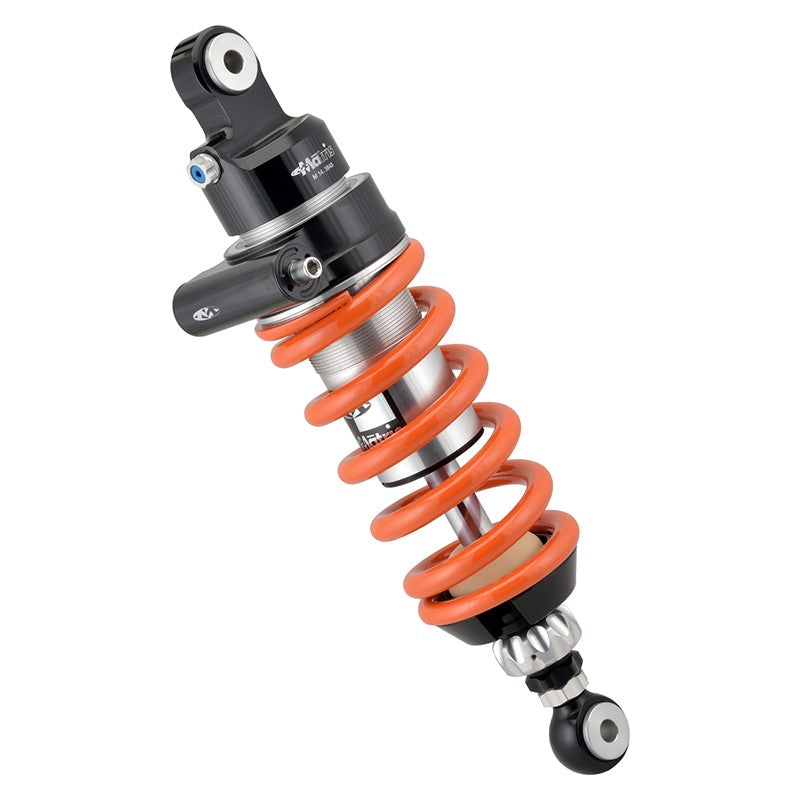

The M46KD is a rear shock for Naked & Road bikes, of very easy use and adjust for the road rider to get a right set-up.
Computerized engineering systems are used to design, project and produce all the components and only materials of high-end technical and mechanical characteristics are used.
High precision machining with the objective of reducing weight and friction to offer a basic range of shocks to improve comfort, safety, and setting (always with Matris “look”).
• Single-way adjustable hydraulic shock: REBOUND.
• Cylinder D.46 with inner pressurized expansion tank (Nitrogen gas N2) with full floating piston for gas/oil separating.
• Piston shaft D.16 mm made from high tensile alloy Steel, hard Chrome coatted.
• Fully re-buildable and re-valveable.
• Spring in Cr-Mb alloy Steel, available in different rates (based on the bike and the rider weight).
• All components, machined from Alu alloy, are with anodizing treatment.
• Nitrogen gas (N2) charging valve
• The rear shocks series M46KD are supplied as standar with spring Preload by millimetric rings . On demand, a unit of Hydraulic spring Preload. Is also available. Type: (a) Integrated, (b) Flex, (c) Flex-Knob, according to different applications.
Range of adjustment: 7 mm
Also available the new IK integrated hydraulic spring preload.
• Bottom eyelet or fork joint, machined from billet in Alu alloy (Al 7075)
Many models, are also available with ride height adjustment for a customizable setting of the bike.
Range of length adjustment: 9 mm

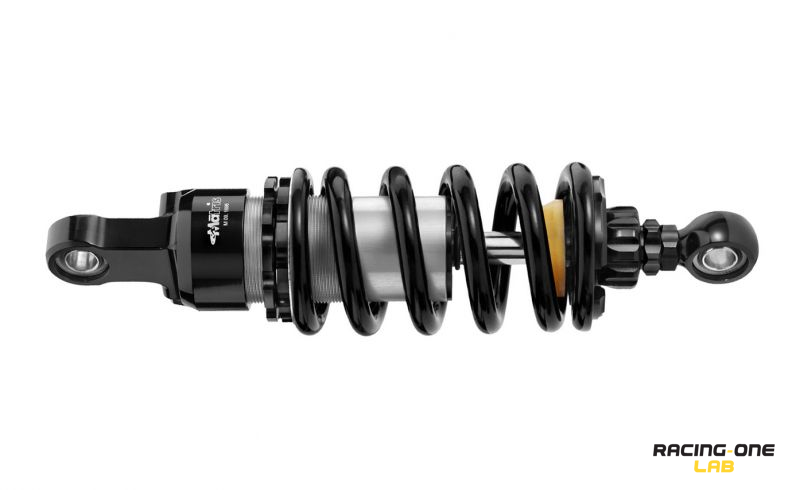

M46KD DARK Series
Available also with Black Spring.
