Overview
NOTE: This Kit uses the original Spring from the OE shock

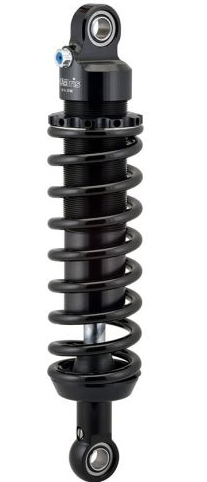

Set rear shock for Classic & Custom bikes, of very easy use and adjust for the road rider to get a right set-up.
Computerized engineering systems are used to design, project and produce all the components and only materials of high-end technical and mechanical characteristics are used.
High precision machining with the objective of improving comfort, safety, and setting.
• Single-way adjustable hydraulic shock: REBOUND.
• Cylinder D.40 in Aluminum alloy with inner pressurized expansion tank (Nitrogen gas N2) with full floating piston for gas/oil separating.
• Piston shaft D.16 made from high tensile alloy Steel, hard Chrome coated.
•Spring Preload by millimetric rings.
• Spring in Cr-Mb alloy Steel, available in different rates (based on the bike model and the rider/passenger/luggage weight).
•Fully re-buildable and re-valveable.
•All components, machined from Alu alloy, are with anodizing treatment.Ammortizzatore di tipo idraulico, a singola regolazione: ESTENSIONE.
• Bottom eyelet machined from billet in Alu alloy (Al 7075). Some models, are also available with ride height adjustment for a customizable setting of the bike.
Range of length adjustment: 9 mm
