Overview

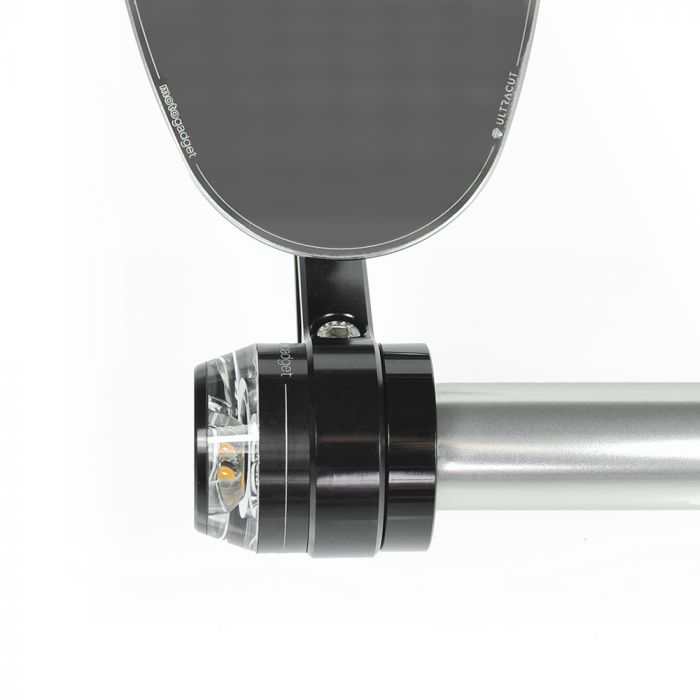

The bar adapter uni disc cone allows for the mounting of all m.view handlebar end mirrors in combination with the m.blaze handlebar end turn signals without moving the grips and controls on the handlebars. It creates a clamping surface for the handlebar end mirror outside the handlebar tube and at the same time allows the mounting of the handlebar end turn signals. Whether for the m.view blade, m.view spy, m.view flight, m.view cafe, m.view road, m.view pace, m.view cruise or m.view street.

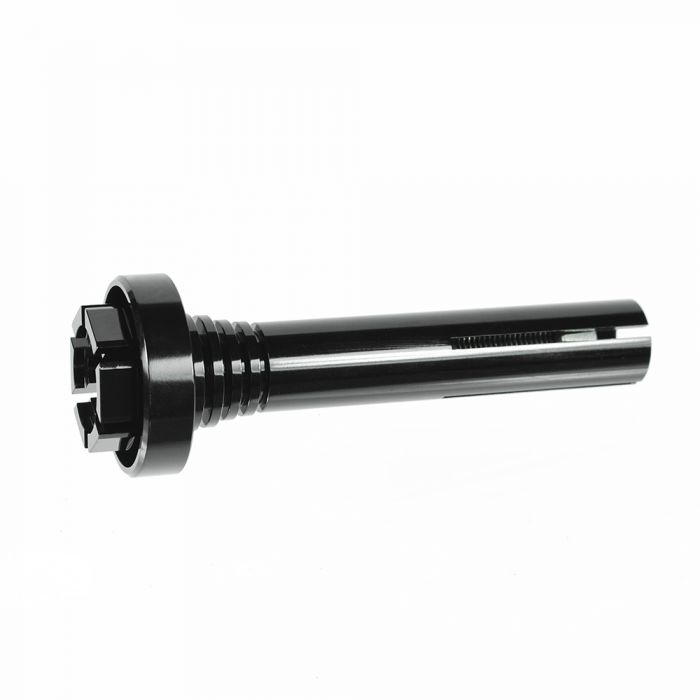

They are CNC machined from billet aluminum and black anodized. The clamping in the handlebar end is done by tightening an M6 screw inside the adapter. The clamping pieces are widened and a stable assembly is established. Next the mirror clamp on the adapter is tightened and the handlebar end turn signal is clamped at the same time.

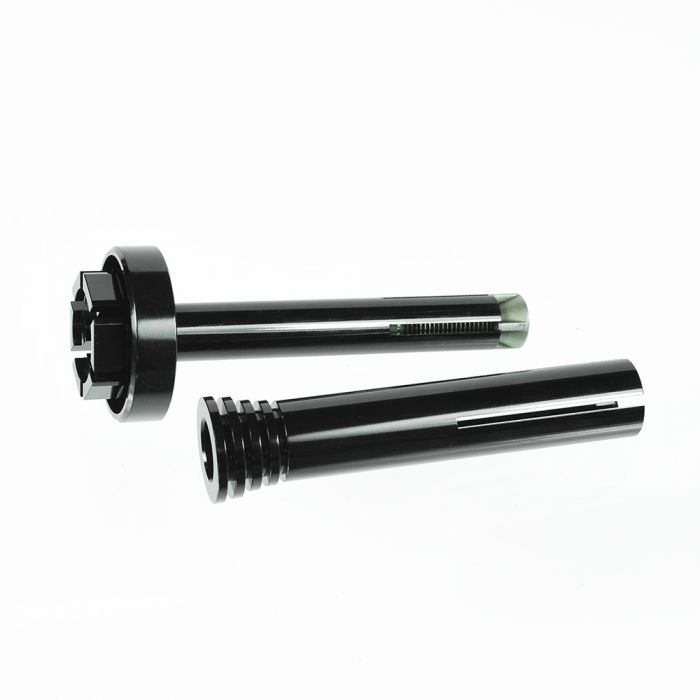

The bar adapter uni disc cone comes with two clamps for the left and right side of the handlebar. They fit perfectly to our grips m.grip as well as the push buttons m.switch basic and m.switch mini.
They are mounted directly in the handlebar end (22 mm, 7/8" and 1 inch) with a free inside diameter of 12 to 21 mm and a length of 90 mm.
Adapter for motogadget m.view series metalmirrors: m.view spy, m.view blade, m.view flight, m.view cafe, m.view road, m.view pace, m.view cruise and m.view street.
Specifications and features
Fits all 22 mm, 7/8" and 1 inch handlebars with a free inside diameter of 12 to 21 mm
Total length: approx. 105 mm, at least 90 mm free inner handlebar tube length required
Width of clamping surface for mirrors: 8 mm, fits all m.view handlebar end mirrors
Diameter of clamping surface: 1 inch, fits all m.view handlebar end mirrors
Weight (1 piece): 55 g
Sold in pairs.
