AELLA Aluminum Variable Handlebar (Monster 1200)

Monsters have lots of voices such as long handle and shallow angle. AELLA will solve the problem with a variable handle. Bold and computed meat extraction is the culmination of AELLA processing technology.

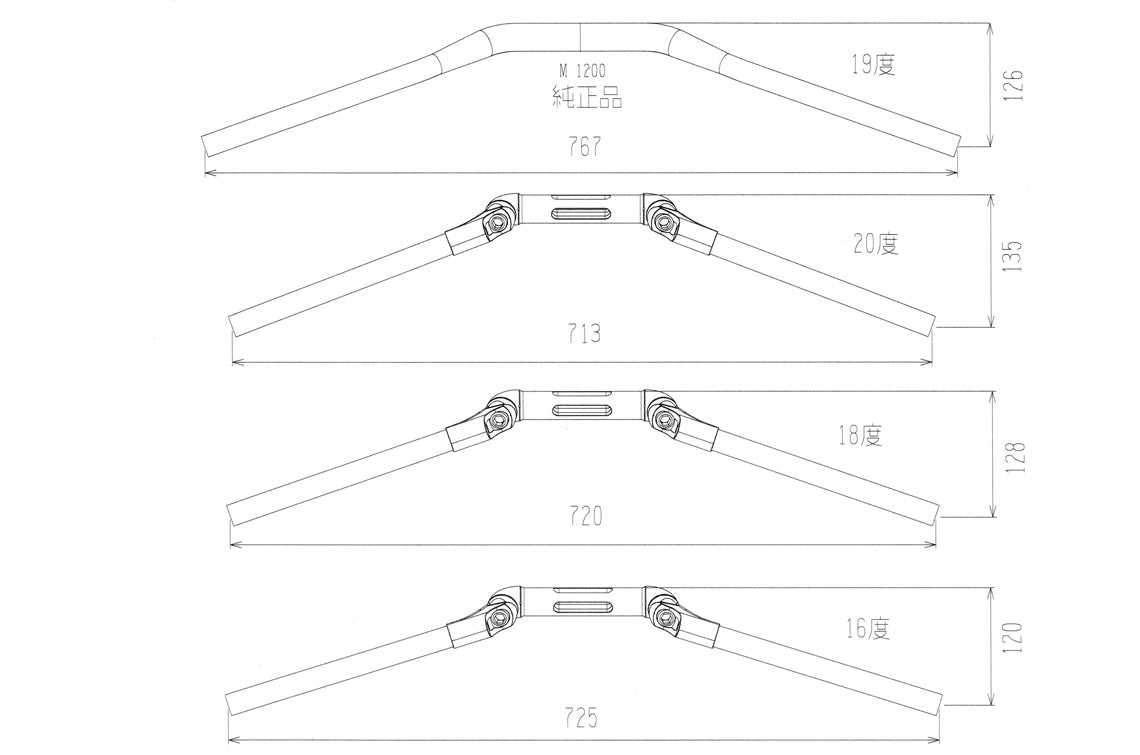

• Position: Pure handle value / Handle width 767 mm Aperture angle 19 °
• Aperture angle 20 ° Width 713 mm / Pull 9 mm Pore front
• Angle 18 ° Width 720 mm / Pull 2 ??mm back (10 mm UP with height set at 18 °)
• Aperture angle 16 ° Width 725 mm / pull 6 mm back
• We usually use 2 mm spacer, but you can further raise the handle height by using spacer "7 mm" "12 mm" separately sold.

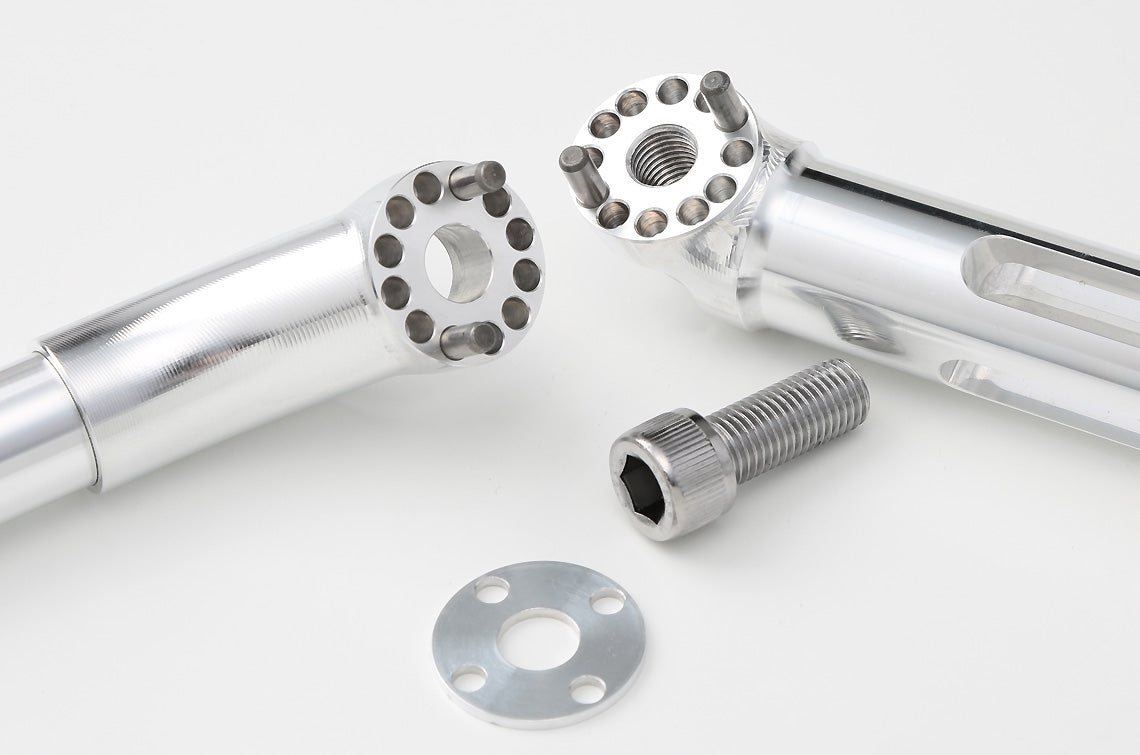

• Top bolt uses custom bolt with coat to suppress rust
• Fully designed 3 Variable handle position (diaphragm angle)
• Switch box positioning hole drilling completed
• Cable and hose replacement not required

Suitable car type

• Monster 1200 ~ 16 (AE-27038 conforms to 1200R.)
• If there is a change in the vehicle width described in the car verification, due to the replacement of the handle, when there is a change of ± 20 mm or more, there is a case that a notification of the structural change is required at the inspection Yes.
• Color will be white alumite / black alumite.

AELLA handlebar end slider AE-68302 is compatible.
