Overview

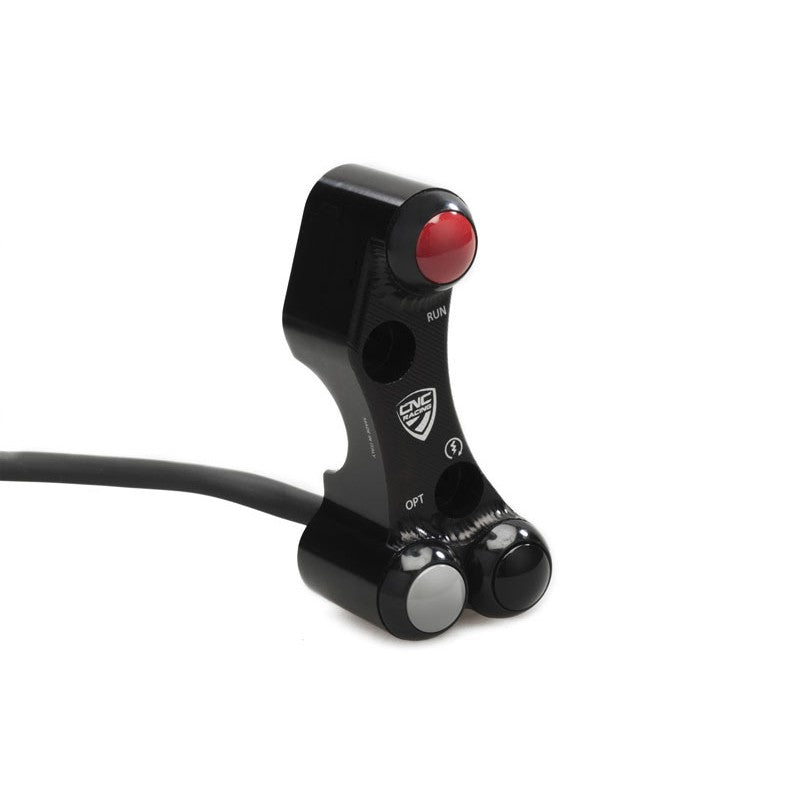

With a switch body is machined from full 7075 aluminum (Ergal) then undergone a hard black anodizing process that enhances process with CNC machinery, this switch is as robust as they come!. All the buttons compliant with the IP67
military standard that certifies the switch itself is water resistant.
The operation of all buttons is guaranteed by over 700,000 cycles.
Completely plug&play for the Models specified (but can be used on other bikes if you are willing to do a little splicing): just dismantle the original
switch with the tools recommended by the Manufacturer and the master
cylinder clamp, then fit the CNC Racing switch connecting the plug to
the bike original cable. Nothing else is required and you can always go
back to the original configuration without any modification.
Red button - Engine Start/Stop
Black button - Starter
Grey button - activator / breaker option button multiple uses - can be customized by Customer
Fits on the following Brembo brake master cylinders:
10476060 19x20
10476070 19x18
10476075 19x18
10476080 16x18
10476082 16x18
10476085 16x18
10476087 16x18
XR01130 16x16
XR01170 19x16
XR01171 19x18
XR01172 19x20
XA7G710 19x18 GP
XA7G7G0 19x18 GP
