Overview
ETA: JULY-AUGUST 2025
***LIMIT 1***
UPDATE (JUNE 2024): This is a combined version now with ECE Certification (E-Mark) and SAE DOT compliance for worldwide street legal use. Allows for street legal use in the USA, Canada, Mexico, and all countries that accept E-Mark standards (download list of countries below). DRL hookup harness required to enable the LED lights bars to turn on for those countries that do not support DRL in the front turn signals, sold separately.
DOES NOT FIT 2006-2007 R6 or 2006-2009 R6S models

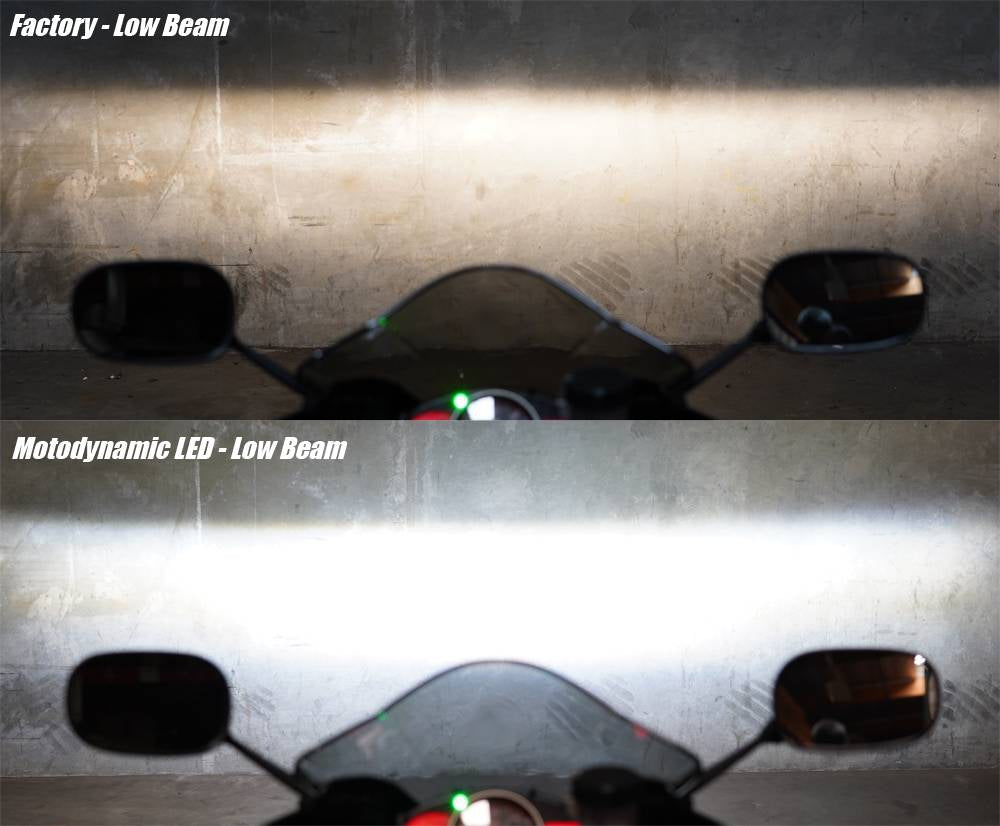

The one and only aftermarket R6 head light that has been tested in a photometric laboratory to meet and exceed SAE/DOT and ECE certification requirements for UNECE regulations for motorcycle lighting . Don't be fooled into purchasing head lights that are not SAE DOT/ECE approved or 'for off-road using only'. Those head lights have the incorrect focus on the beams and scatter the light everywhere, which may blind oncoming traffic and/or cause unsafe riding conditions.
Countries accepting E-Mark standards: >>>DOWNLOAD LIST HERE<<<
Download ECE certifications here: E8_148_14154_00 & E8_149_14154_00
DRL hookup harness required to enable DRL light bars to activate for Non-USA models (link Below):

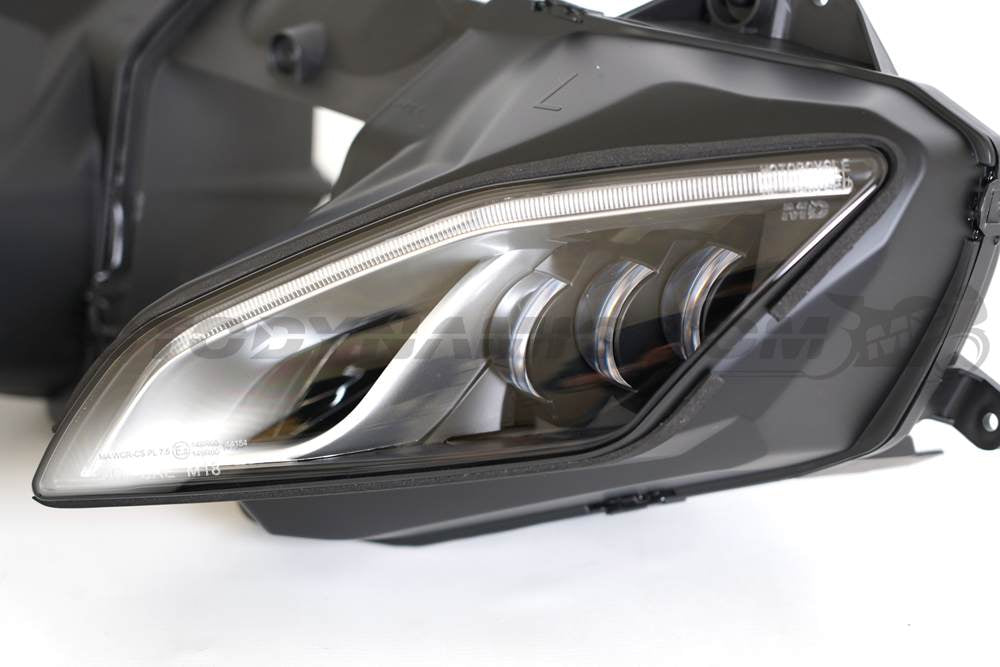

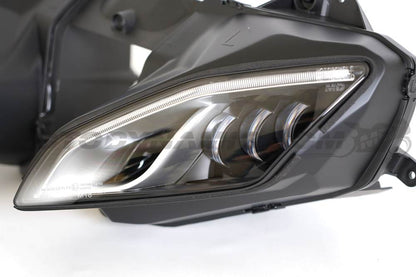

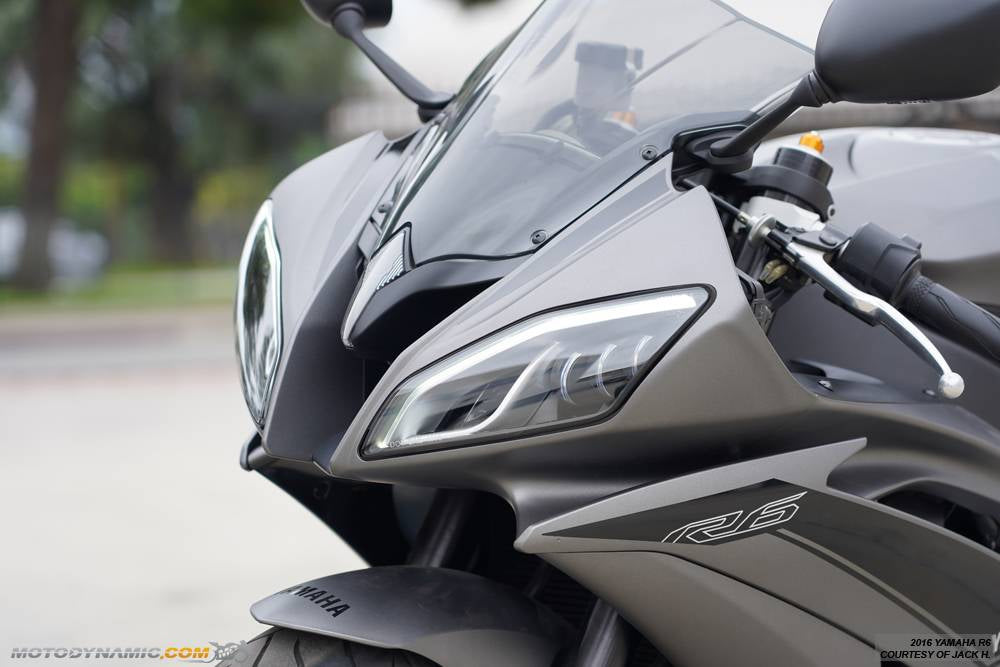

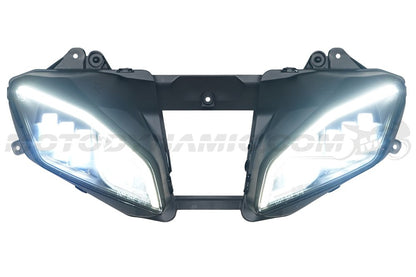

Yamaha YZF-R6 2008-2016 Full LED Projection Head Lights with Daytime Running Light (DRL) SAE DOT & ECE E-mark Certified
Compatible with:
Yamaha YZF-R6 2008-2016 USA and Non-USA models*
*Does NOT fit 2006-2007 R6 models or 2006-2009 RS6 models
*for Non-USA models, DRL hookup harness required to enable DRL light bars to activate (Link to harness below).
Specifications:
• Dimensions: 20" x 8-3/4" x 9-3/4" (Width x Height x Depth)
• Weight: 6.00 lbs (2.72 kgs)
Materials:
• Lens: PC
• Inner trims: PP
• Rear housing: PP
• LED heatsink: Aluminum
LED Specs:
Low Beam (Projection):
• Wattage: 28W
• Current Draw: 2.04A @13.8V
• Lumens: 2400
• Color Temperature: 6500K +/- 5% Tolerance
High Beam (Reflective):
• Wattage: 32W
• Current Draw: 2.26A @ 13.8V
• Lumens: 2720
• Color Temperature: 6500K +/- 5% Tolerance
Daytime Running Light (Light Bar):
• Wattage: 8.8W
• Current Draw: 0.64A @ 13.8V
• Color Temperature: 6500K +/- 5% Tolerance
Features:

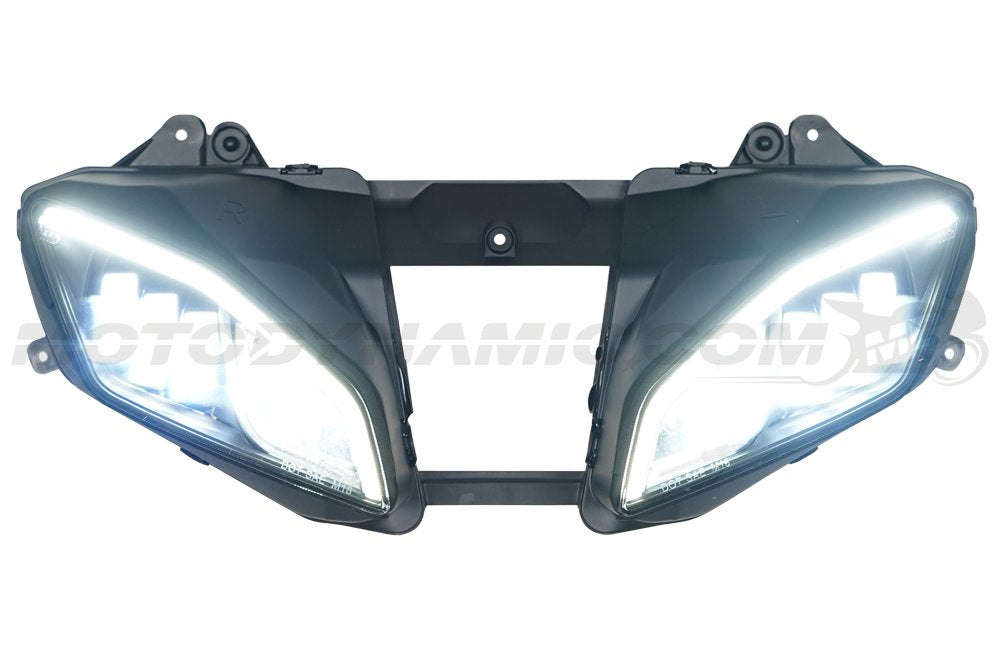

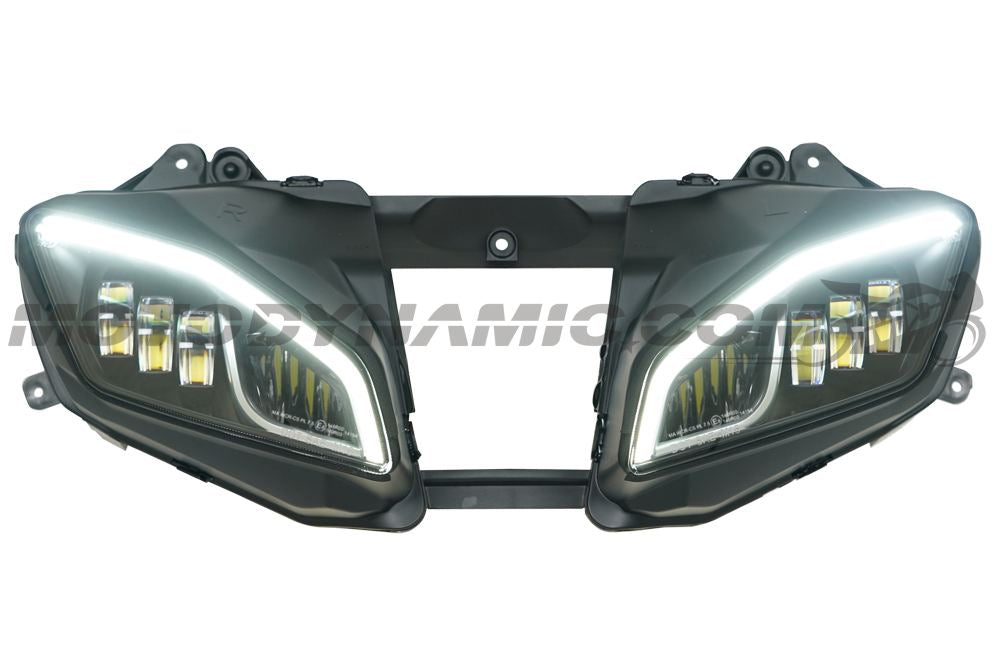

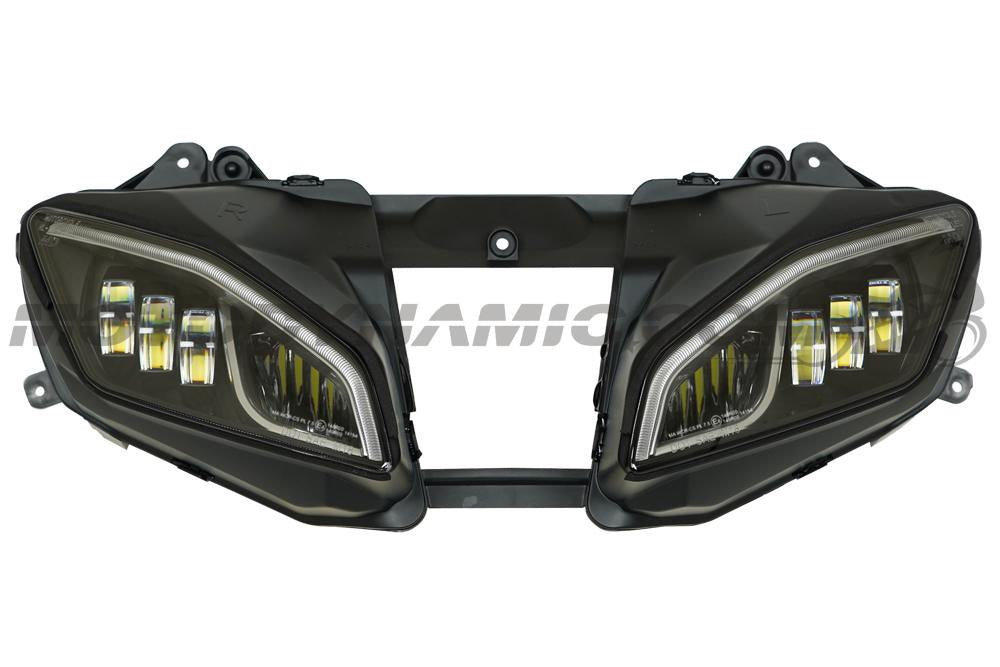

• 6 LED projector low beams, 2 LED reflective high beams and 2 LED DRL light bars

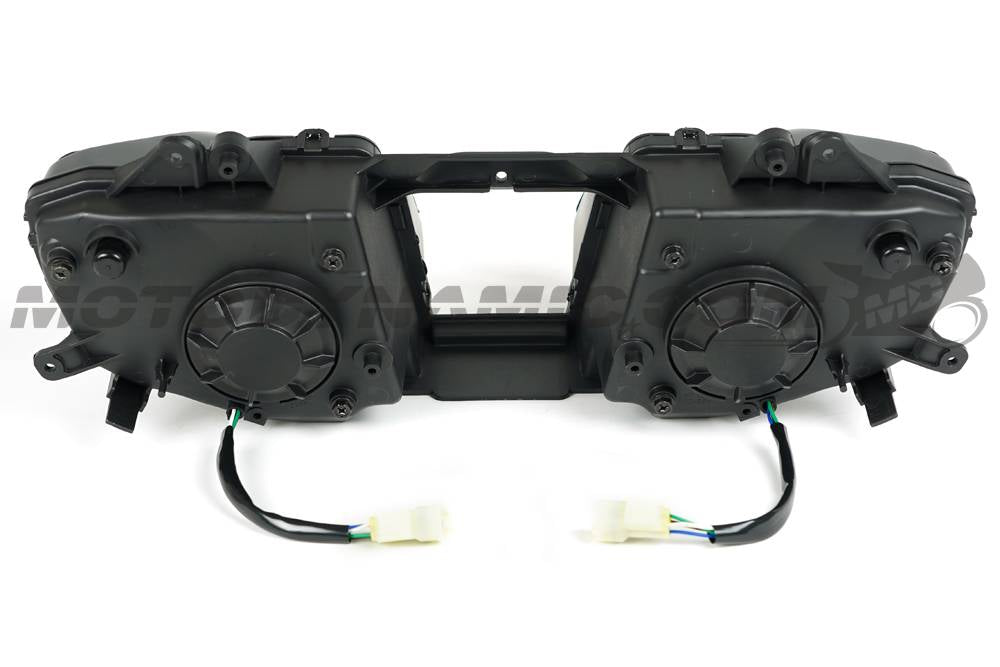

• 100% direct bolt-on and plug and play with included subharness, no modification needed
• Includes splitter harness to power up the DRLs off your front turn signals (for USA models only)
• ECE (E-Mark) certified and SAE/DOT compliant for street legal use in the USA, Canada, Mexico and all countries that accept ECE standards
• Installation instructions included, knowledgeable installation highly recommended
• Warranty: 1 Year
>>>DOWNLOAD QUICK INSTALLATION INSTRUCTIONS HERE<<<
Full step-by-step installation video below
